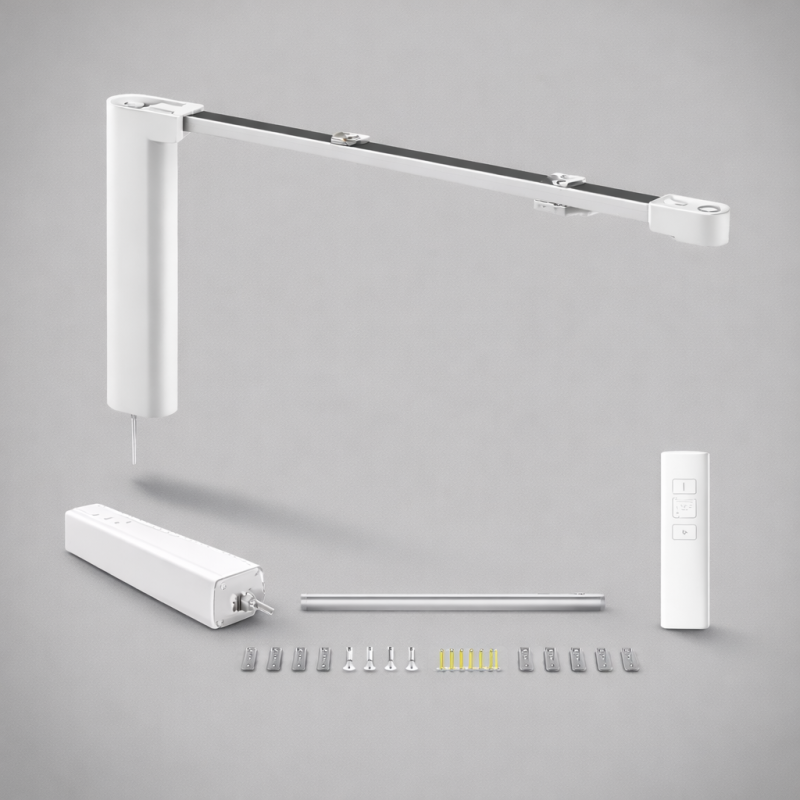

BCM100D QuickLink Curtain Motor Suit (3.2m)
The BCM100D QuickLink Curtain Motor Suit is a complete smart curtain automation solution designed for modern smart homes. This package includes a high-performance curtain motor, an adjustable 3.2 meter curtain track, and a wireless remote control, allowing seamless and intelligent curtain control.
When connected to the LifeSmart Smart Station, users can remotely control curtains via the LifeSmart mobile app, automate curtain schedules, and integrate curtain operation with other smart home devices and scenes. The system ensures smooth, quiet, and reliable operation, delivering comfort, convenience, and luxury.
Designed for residential and commercial environments, the BCM100D provides precise curtain movement control and supports scheduled automation for enhanced energy efficiency and smart living.
Key Features
- Complete curtain motor solution with track and remote
- Includes adjustable curtain track (up to 3.2 meters)
- Remote control included
- Smart control via LifeSmart App
- Scheduled automation support
- Smooth and quiet motor operation
- Works with LifeSmart Smart Station
- Reliable and durable motor performance
- Ideal for smart homes, villas, hotels, and offices
- Supports smart scene integration
| Specifications | |
| Radio Protocol | CoSS |
| Power Supply | 100-240V AC 50/60Hz |
| Indicator | LED |
| Button | Coding / Setting button |
| Casing | ABS, aluminum |
| Operating Temperature | -20~85℃ |
| Operating Humidity | 0~80% |
| Interface | RJ11 |
| color | White |
| Power Consumption | 40W |
| Dimensions | 166 × 50 × 50 mm |
| Signal Range (Open Field) | 100m |
| Weight | 3.1 kg |
| Model Number | BCM100D |
| Moving Speed | 12cm/s |
| Rated Torque | 1.2Nm |
| Ingress Protection | IP20 |
| Power Cable Length | 85cm |
| Maximal Load | 25Kg |
| Curtain Track Length | 3.2m |
| Track Set | Track(1m)* 4, track (0.5m), track(0.2m)*2, track(0.1m), connector(0.2m), connector(0.1m)*5 |
